| 정확성: | 0.1Ph, ±5mV | 적용 가능한 온도 범위: | 5 ~ 70℃ |
|---|---|---|---|
| 프로브 유형: | 백금바늘 | 범위: | 0~+1500mv |
| 전극 전위: | 245-270mV(15~30°) | 내부저항: | 10kΩ 이하 |
| 전극 안정성: | ±8mV /24 | 전극 표시기: | 전기 양도성 |
| 재료: | PC | 전극 길이: | 대략. 70cm / 27.5인치 |
| 전극 크기: | 155*20*20mm / 6.1*0.8 * 0.8in | 전극 무게: | 대략. 49.6g / 1.8온스 |
| 패키지 크기: | 18*4.5*2.3cm / 7.1*1.8 * 0.9in | 패키지 무게: | 대략. 75g / 2.6온스 |
| 커넥터 유형: | BNC Q9 | ||
| 강조하다: | Platinum Needle ORP Probe,BNC Q9 Connector ORP Electrode,0~+1500mv Range Oxidation-Reduction Potential Probe |
||

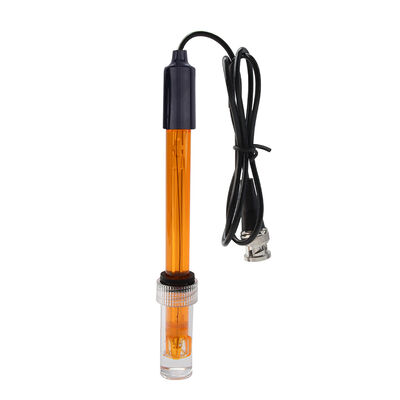

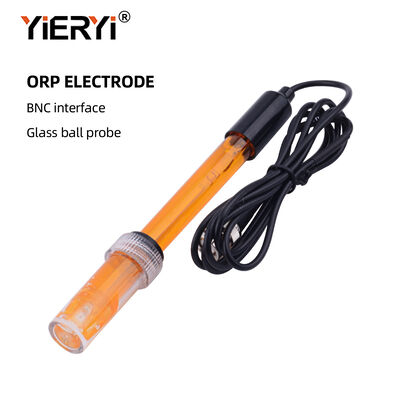

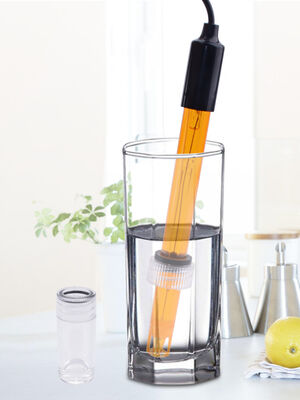

Professional ORP electrode probe designed for measuring oxidation-reduction potential in aquariums, hydroponic systems, laboratories, and various water quality applications. Features a BNC Q9 connector for compatibility with most ORP meters and controllers.
This combined electrode consists of a platinum needle indicating electrode and silver-chlorinated silver reference electrode. It serves as the measuring element for ORP meters and water quality testers, providing accurate oxidation-reduction potential measurements in aqueous solutions.
| Material | PC |
| Model Type | ORP-101 Laboratory Electrode Probe |
| Sensitive Element | Crystal Ball Bubble |
| Measurement Range | 0 to ±1999mV |
| Accuracy | ±5mV |
| Temperature Range | 5 to 70℃ |
| Electrode Potential | 245-270mV (15-30℃) |
| Reference Electrode Internal Resistance | ≤10kΩ |
| Electrode Stability | ±8mV/24h |
| Indicator Electrode | Good Conduction |

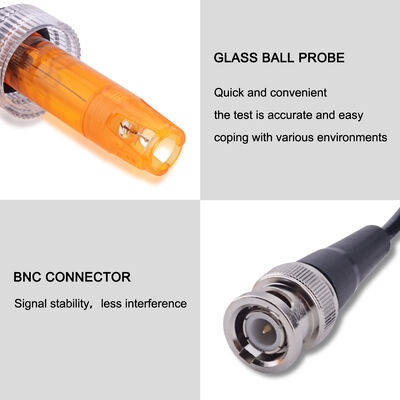

| Connector Type | Q9 BNC Upright |
| Cable Length | Approx. 70cm / 27.5in |

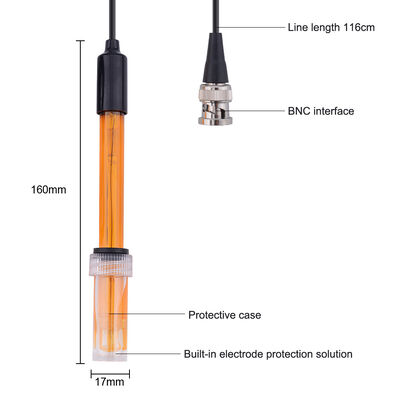

| Electrode Dimensions | 155 × 20 × 20mm / 6.1 × 0.8 × 0.8in |
| Electrode Weight | Approx. 49.6g / 1.8oz |
| Package Dimensions | 18 × 4.5 × 2.3cm / 7.1 × 1.8 × 0.9in |
| Package Weight | Approx. 75g / 2.6oz |
